VW LT 28 1990 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP |
|---|---|
| 1 | Headlights (Low Beam, Left) |
| 2 | Headlights (Low Beam, Right) |
| 3 | Headlights (High Beam, Left) High Beam Indicator Light |
| 4 | Headlights (High Beam, Right) |
| 5 | Rear Window Defroster |
| 6 | Emergency Flasher, Radio |
| 7 | Cig, Lighter, Clock, Interior Lights, Instrument Cluster |
| 8 | Turn Signals, Turn Indicator Light |
| 9 | Back-Up Lights, Horns |
| 10 | HVAC Blower Fan |
| 11 | Windshield Wiper/Washers |
| 12 | License Plate Lights, Trunk Light |
| 13 | Exterior Running Lights, Brake Light - Right |
| 14 | Exterior Running Lights, Brake Light - Left |
| 15 | Radiator Cooling Fan |
| Fuel Pump (ON Fuel Pump Relay) | |
| Air Conditioning (ON A/C Relay) |

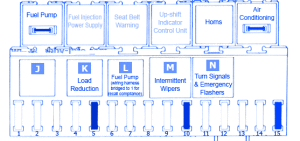

VW LT 28 1990 Main Fuse Panel/Board – Fuse Symbol Map
