VW Jetta 1989 Fuse Box/Block Circuit Breaker Diagram

VW Jetta 1989 Fuse Box/Block Circuit Breaker Diagram



FusesUsage
1Not Used
2Fuel Pump
3Seat Belt Warning Relay
4Not Used
5A/C Relay
6Horn Relay
7Not Used
8Load Reduction Circuit Relay
9-
10Intermittent Wiper Relay
11Not Used
12Turn Signal/Hazard Unit
13Not used
14Radiator Cooling Fan (16-Valve)
15O2 Sensor Sytem Power Relay
16Idle Stabilizer Relay
17A/C Thermo Fuse
18Coolant Level Indicator Relay
19Power Window Relay
20Heated Seat Relay
21Heated Seat Relay
22Not Used
23Power Window Fuse

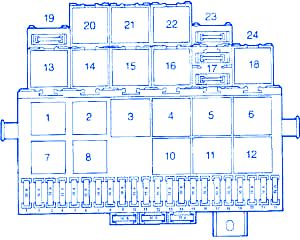

VW Jetta 1989 Fuse Panel/Board – Fuse Symbol Map
