VW GTI 1983 Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP |
|---|---|
| 1 | Radiator Cooling Fan |
| 2 | Brake Lights, Cruise Control |
| 3 | Cig Lighter, Radio, Clock, Interior Lights |
| 4 | Emergency Flashers |
| 5 | Fuel Pump |
| 6 | Open |
| 7 | Tail Lights, Parking Lights, Side Marker Lights-Left |
| 8 | Tail Lights, Parking Lights, Side Marker Lights-Right |
| 9 | Headlights(High Beam, Right), High Beam Indicator |
| 10 | Headlights (High Beam, Left) |
| 11 | Windshield Wipers/Washers |
| 12 | Heated Seats (if Installed) |
| 13 | Rear Window Defroster |
| 14 | HVAC Blower Fan |
| 15 | Back-Up Lights, Shift Console Light (Automatic Trans, Only) |
| 16 | Horns |
| 17 | Open |
| 18 | Seat Belt Warning Light, Horn Relay, Coolant Level/Temperature Warning Light, Oil Pressure, Oil Temperature, & Volt Gauge, Cruise Control (Manual Trans) |
| 19 | Turn Signal, Brake Warning Light |
| 20 | License Plate Lights, Trunk Light (1987) |
| 21 | Headlights (Low Beam, Left) |
| 22 | Headlights (Low Beam, Right) |
| A/C Thermofuse Relay Position 17 | |

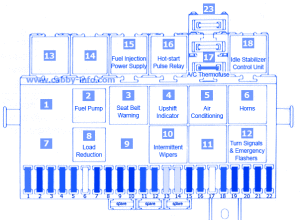

VW GTI 1983 Fuse Panel/Board – Fuse Symbol Map
