FUSE SYMBOL | FUSE MAP |
---|---|
1 | Headlights (Low Beam, Left) |
2 | Headlights (Low Beam, Right) |
3 | Headlights (High Beam, Left) High Beam Indicator Light |
4 | Headlights (High Beam, Right) |
5 | Rear Window Defroster |
6 | Emergency Flasher, Radio |
7 | Cig, Lighter, Clock, Interior Lights, Instrument Cluster |
8 | Turn Signals, Turn Indicator Light |
9 | Back-Up Lights, Horns |
10 | HVAC Blower Fan |
11 | Windshield Wiper/Washers |
12 | License Plate Lights, Trunk Light |
13 | Exterior Running Lights, Brake Light - Right |
14 | Exterior Running Lights, Brake Light - Left |
15 | Radiator Cooling Fan |
Fuel Pump (ON Fuel Pump Relay) | |
Air Conditioning (ON A/C Relay) |

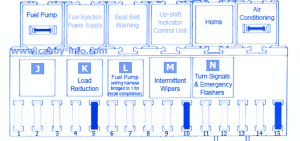

VW Cabriolet 1980 Fuse Panel/Board – Fuse Symbol Map
