VW Beetle 1971 Fuse Box/Block Circuit Breaker Diagram

VW Beetle 1971 Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolRatingFuse Map
18ATurn signal Speedometer Warning Lights Fuel Gauge
28AWindshield Wipers Brake Warning Light Automatic Stick Shift Warning Lights Rear Window Defroster Switch
38ABrake Lights Horn
48AEmergency Flasher
58AUnassigned
68AInterior Light Ignition Buzzer
78ALeft High Beam High Beam Warning Light
88ARight High Beam
916ALeft Low Beam
108ARight Low Beam
1116ALeft Tail Light
128ARight Tail Light Side Marker Lights License Plate Light

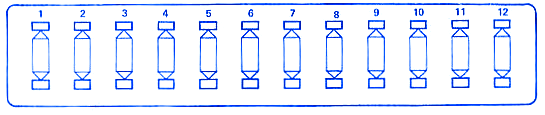

VW Beetle 1971 Fuse Panel/Board – Fuse Symbol Map
