Volvo V70 XC 2003 Engine Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Function | Amps |
|---|---|---|
| 1 | Rear Electronic Module (REM), Via Rear Electronic Module (REM), Cargo Cmpartment Lighting (S80) | 10A |
| 2 | Via Rear Electronic Module (REM), Rear Fog Light | 10A |
| 3 | Brake Lights | 15A |
| 4 | Reversing Lights | 10A |
| 5 | Heated Rear Window (Control Voltage) | 5A |
| 6 | Tailgate/Trunk Opening, Tailgate/Trunk Locking | 10A |
| 7 | Foldable Head Restraint (S80), Cargo Compartment Outlet(V70) | 10/15A |
| 8 | Rear Door Central Locks, Tank Hatch Unlocking | 15A |
| 9 | Towing Bracket (30 Feed) | 15A |
| 10 | CD Changer, RTI CD-ROM Player, RTI System Control Module(RTI), Pager | 10A |
| 11 | - | - |
| 12 | Rear Window Wiper | 15A |
| 13 | Bass Speaker Amplifier (V70) | 15A |
| 14 | - | - |
| 15 | Towing Bracket (151 Feed) | 20A |
| 16 | Cargo Compartment Outlet (S80) | 10A |
| 17-18 | - | - |

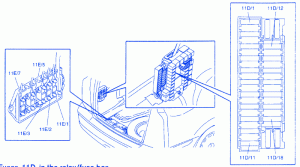

Volvo V70 XC 2003 Engine Fuse Panel/Board – Fuse Symbol Map
