Volvo 740 1993 Main Fuse Box/Block Circuit Breaker Diagram

Volvo 740 1993 Main Fuse Box/Block Circuit Breaker Diagram

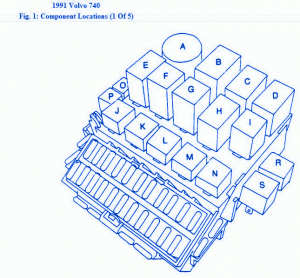

Fuse/Relay SymbolFuse/Relay Map
ABulb Failure Warning Relay
BSeat Belt Reminder Relay
CIntermittent Wiper Relay (Front)
DIntermittent Wiper Relay (Rear)
EFuel Injection System Relay
FFog Light Relay (Front)
GTurn Signal/Hazard Flasher Relay
HNot Used
IOverdrive Relay
JPower Window/Seat Heater Relay
KHeadlight Relay
LCentral Locking System Relay
MFog Light Relay (Rear)
NNot Used
ONot Used
PNot Used
RNot Used
SNot Used

Volvo 740 1993 Main Fuse Panel/Board – Fuse Symbol Map
