Volkswagen Touareg V8 2003 ACCU Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description | Amps |
|---|---|---|
| S162 | Spark Plugs (Coolant) | 50A |
| S163 | Fuel Pump (FP) Relay/Glow Plug Relay | 50A |
| S164 | Coolant Fan Control (FC) Control Module/Coolant Fan | 40A |
| S176 | Relays Panel Interior | 110A |
| S177 | Generator (GEN)(90Amp) | 110A |
| Generator (GEN)(120Amp) | 150A | |
| S178 | ABS (Hydraulic Pump) | 30A |
| S179 | ABS | 30A |
| S180 | Coolant Fan | 30A |

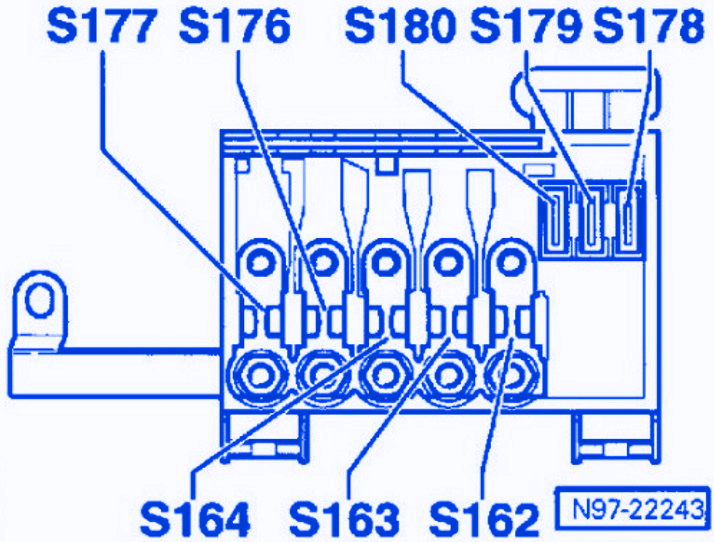

Volkswagen Touareg V8 2003 ACCU Fuse Panel/Board – Fuse Symbol Map
