Volkswagen Rialta 1999 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 10A | Left Headlight Low Beam |
| 2 | 10A | Right Headlight Low Beam |
| 3 | 10A | License Plate Lights |
| 4 | 15A | Rear Window Wiper and Washer Sytem |
| 5 | 15A | Windshield Wiper/Washer |
| 6 | 20A | A/C, Fresh Air Blower |
| 7 | 10A | Right Tail Light |
| 8 | 10A | Left Tail Light |
| 9 | 20A | Rear Window Defroster |
| 10 | 15A | Fog Lights |
| 11 | 10A | Left Headlight High Beam |
| 12 | 10A | Right Headlight High Beam |
| 13 | 10A | Horn |
| 14 | 10A | Back-Up Lights |
| 15 | 10A | Engine Electronics |
| 16 | 15A | Power Sunroof, Front Map/Reading Light |
| 17 | 10A | Emergency Flasher |
| 18 | 20A | Fuel Pump (FP), Heated Oxygen Sensor (HO2S) Control Moldule |
| 19 | 30A | Coolant Fan, A/C Relay |
| 20 | 10A | Brake Lights |
| 21 | 15A | Interior Lights, Clock, Luggage Compartment Light |
| 22 | 10A | Cigarette Lighter, Radio, Luggage Compartment Release |

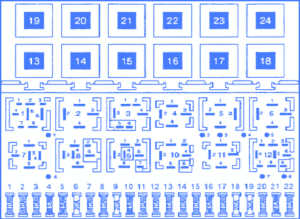

Volkswagen Rialta 1999 Main Fuse Panel/Board – Fuse Symbol Map
