Volkswagen Golf 1999 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Ampere Rating | Description |
|---|---|---|
| 1 | 10A | Headlight, Low Beam, Left |
| 2 | 10A | Headlight, Low Beam, Right |
| 3 | 10A | Instrument Panel Lights, License Plate Lights |
| 4 | 15A | Glove Box Light |
| 5 | 15A | Wiper/Washer |
| 6 | 20A | Fresh Air Blower |
| 7 | 10A | Taillight, Side Marker Light, Right |
| 8 | 10A | Taillight, Side Marker Light, Left |
| 9 | 20A | Rear Window Defogger |
| 10 | 15A | Open, or Fog Lights (2.0 16-Valve) |
| 11 | 10A | Headlight, High Beam, Left |
| 12 | 10A | Headlight, High Beam, Right |
| 13 | 10A | Horn Radiator Cooling Fan |
| 14 | 10A | Backup Lights, Washer Nozzle Heaters |
| 15 | 10A | Open or Engine Electronics (2.0 16-Valve) |
| 16 | 15A | Dash Warning Lights |
| 17 | 10A | Emergency Flasher Switch |
| 18 | 20A | Fuel Pump, OXS Heater (Gasoline Engines) |
| 19 | 30A | Radiator Cooling Fan, A/C |
| 20 | 10A | Brake Lights, Cruise Control |
| 21 | 15A | Interior Lights, Digital Clock |
| 22 | 10A | Radio, Cigarette Lighter |

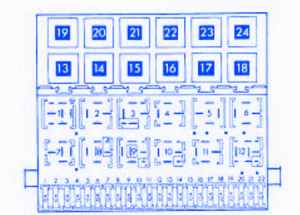

Volkswagen Golf 1999 Main Fuse Panel/Board – Fuse Symbol Map
