Volkswagen Fox 1996 Compartment Fuse Box/Block Circuit Breaker Diagram

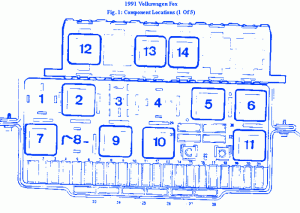

| Fuse/Relay Symbol | Fuse/Relay Map |
|---|---|
| 1 | Open Position |
| 2 | Radiator Fan Relay |
| 3 | Upshild Indicator Control Relay Unit |
| 4 | Open Position |
| 5 | Load Reduction Relay (X-Relay) |
| 6 | Rear Window Wiper Relay |
| 7 | Horn Relay |
| 8 | Clip (Bridge Betwen Terminals 36 and 38) |
| 9 | Wiper/Washer Relay |
| 10 | Relay for Main Fuel Pump and Transfer Pump |
| 11 | Emergency Flasher Relay |
| 12 | Seat Belt Warning Relay |
| 13 | Idle Speed Relay |
| 14 | Air Conditioner Relay |
Volkswagen Fox 1996 Compartment Fuse Panel/Board – Fuse Symbol Map
