Volkswagen Cabrio 2001 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Color | Fuse Map |
|---|---|---|---|
| 1 | 10A | Red | Left Headlight Low Beam |
| 2 | 10A | Red | Right Headlight Low Beam |
| 3 | 10A | Red | Instrument & License Lights |
| 4 | 15A | Blue | Rear Window Wiper |
| 5 | 15A | Blue | Windshield Wiper/Washer Rear Washer |
| 6 | 20A | Yellow | A/C, Fresh Air Fan |
| 7 | 10A | Red | Right Tail Light & Side Marker Light |
| 8 | 10A | Red | Left Tail Light & Side Marker Light |
| 9 | 20A | Yellow | Rear Window Defroster, Mirror Heater |
| 10 | 15A | Blue | Fog Lamps |
| 11 | 10A | Red | Left Headlight High Beam & High Beam Indicator |
| 12 | 10A | Red | Right Headlight High Beam |
| 13 | 10A | Red | Horn, Radiator Fan Run-On |
| 14 | 15A | Blue | Back Lights (M/T), Power Mirrors, Heated Front Seats, Heated Windshield Washer Jets, Cruise Control (M/T) |
| 15 | 10A | Red | Engine Electronics, Coolant Pump Run-On (V6 Models) |
| 16 | 15A | Blue | Warning Indicator Lights, Glove Box Light, Cassette Storage Light, Shift Patern Illumination (A/T) |
| 17 | 10A | Red | Turn Signals |
| 18 | 20A | Yellow | Fuel Pump, Oxygen Sensor |

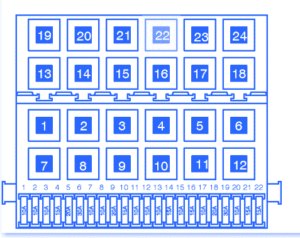

Volkswagen Cabrio 2001 Fuse Panel/Board – Fuse Symbol Map
