Vauxhall Vivaro 2001 In The Engine Compartment Fuse Box / Block Circuit Breaker
Vauxhall Vivaro 2001 In The Engine Compartment Fuse Box / Block Circuit Breaker

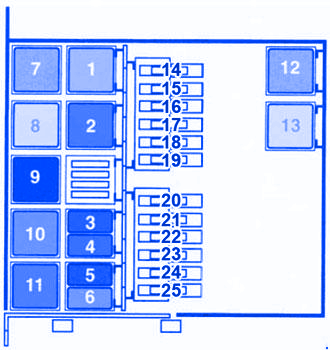

No. A Relay 14 — — 15 — — 16 40 AC 17 50 Windscreen heating 18 50 Windscreen heating 19 60 PDB 20 60 ABS 21 60 PDB 22 60 PDB 23 50 Radiator fan 60 70 24 50 Warning autofuse 60 25 70 Pre-heating
Symbol Relay Map Relay 1 Auxiliary heater: 2 or 3 add-on heater Diesel: Parking heater relay 2 Diesel: Relay for fuel injection computer Petrol: Injection interrupt 3 Diesel pump relay 4 Fuel pump/diesel pre-heating relay 5 Diesel parking heater: Relay for fan unit, second speed level 6 Coupling relay: AC compressor 7 1 add-on heater (thermo-plunger) relay 8 2 or 3 add-on heater (thermo-plungers) Petrol: Parking heater relay 9 Diesel: Fan unit Diesel: Relay for second speed level with AC Petrol: First speed level with AC 10 Petrol: Fan unit Diesel: Relay for first speed level of the fan with AC Petrol: Second speed level with AC 11 — 12 Relay for heatable windscreen. 13 Relay for heatable windscreen.
Vauxhall Vivaro 2001 In The Engine Compartment Fuse Panel / Board – Fuse Symbol Map
