| Number | Circuit |
|---|---|
| 1 | Adaptive forward lighting |
| 2 | — |
| 3 | — |
| 4 | — |
| 5 | — |
| 6 | Rear power window, right |
| 7 | Adaptive forward lighting |
| 8 | Trailer module, Trailer socket |
| 9 | Seat, lumbar support, left |
| 10 | Rear power window, left |
| 11 | Park assist |
| 12 | Electrical sunblind |
| 13 | — |
| 14 | Heated front seats |
| 15 | Trailer module |
| 16 | Seat, lumbar support, right |
| 17 | — |

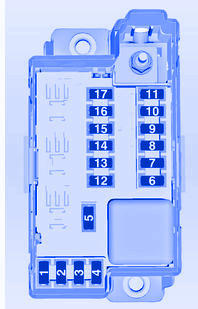

Vauxhall Tigra 2009 Load Compartment Fuse Panel / Board – Fuse Symbol Map
