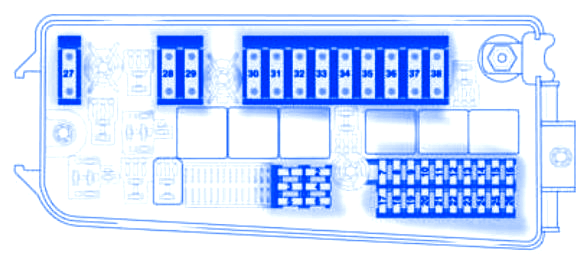

Vauxhall Signum 2003 In Engine Compartment Fuse Box / Block Circuit Breaker

Number	Circuit	Rating [A]
1	Engine electronics, transmission electronics	20
2	Starter	25
3	Horn	20
4	Air conditioning system, climate control system	10
5	Windscreen wash system, front and rear	15
6	Diesel fuel filter heating	30
7	Central control unit, ESP®Plus	15
8	Headlights, windscreen washing nozzles	10
9	Power steering, brake servo	7,5
10	Adaptive Forward Lighting	10
11	Windscreen wipers	30
12	Central control unit, ESP®Plus	7,5
13	Headlight wash system	30
14	Oxygen sensor	10
15	Engine control unit*	10
16	ABS	5
17	—	—
18	—	—
19	Adaptive Forward Lighting, headlight range adjustment	15
20	Headlight range adjustment	5

Number	Circuit	Rating [A]
21	—	—
22	Windscreen wipers	30
23	Auxiliary heating	20
24	Battery voltage, terminal 30	25
25	Battery voltage, terminal 30	30
26	—	—
27	Easytronic	30
28	Tailgate module control unit	60
29	ABS	40
30	Tailgate module control unit	60
31	Vehicle interior module control unit	60
32	ABS	40
33	Vehicle interior module control unit	60
34	Tailgate module control unit	60
35	Cooling fan **	30
		40
36	Cooling fan**, Brake servo	20
		30
		30
37	Adaptive Forward Lighting (AFL): Slot for changing to symmetrical dipped beam for driving abroad	Insert any maxifuse
38	—	—
* – The brake lights are on all the time if the fuse is defective and the ignition is switched on.
** – Depending on engine.
