Vauxhall Monterey Fuse Box / Block Circuit Breaker

Categories:

Fuse Box Diagram, Vauxhall

by Pad Rust

Vauxhall Monterey Fuse Box / Block Circuit Breaker
Vauxhall Monterey Fuse Box / Block Circuit Breaker

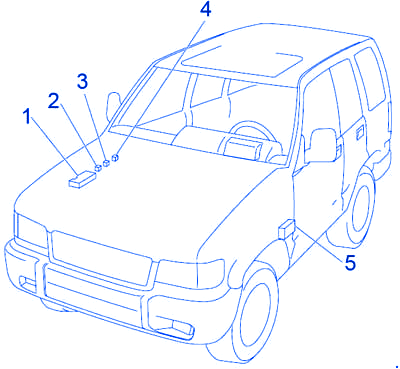

NumberDescription
1Fuse Box
2Glow Relay-1
3Glow Relay-2
4Starter Relay
5Fuse Box

Vauxhall Monterey Fuse Panel / Board – Fuse Symbol Map
