Vauxhall Mokka 2013 Load compartment Fuse Box / Block Circuit Breaker
Vauxhall Mokka 2013 Load compartment Fuse Box / Block Circuit Breaker

NumberCircuit
Mini Fuses
1Seat, lumbar support, driver
2Seat, lumbar support, passenger
3Amplifier
4Trailer socket
5All-wheel drive
6Display
7Spare
8Trailer
9Spare
10Spare
11Trailer
12Navigation
13Heated steering wheel
14Trailer socket
15Steering wheel
16Water in fuel sensor
17Interior mirror
18Spare

NumberCircuit
S/B Fuses
01Power seat driver
02Power seat passengera
03Trailer
04Voltage converter
05Battery
06Headlight washer
07Spare
08Spare
09Spare

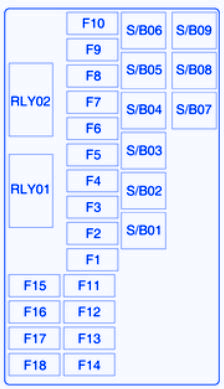

Vauxhall Mokka 2013 Load compartment Fuse Panel / Board – Fuse Symbol Map
