Vauxhall Mokka 2013 Instrument panel Fuse Box / Block Circuit Breaker
Vauxhall Mokka 2013 Instrument panel Fuse Box / Block Circuit Breaker
No. Circuit Mini Fuses 1 Body control module 2 Body control module 3 Body control module 4 Body control module 5 Body control module 6 Body control module 7 Body control module 8 Body control module 9 Door locks 10 Safety diagnosis module 11 Door locks 12 Climate control 13 Tailgate 14 Park assist 15 Lane departure warning, Interior mirror 16 Adaptive forward lighting 17 Power window driver 18 Rain sensor 19 Spare 20 Steering wheel 21 Transmission control module 22 Cigarette lighter 23 Spare 24 Spare 25 Spare 26 Safety diagnosis module 27 Instrument panel cluster 28 Adaptive forward lighting 29 Spare 30 Spare 31 Instrument panel cluster 32 Infotainment, auxiliary, power outlet 33 Display, Infotainment system 34 Onstar UHP/DAB
No. Circuit S/B Fuses 01 Spare 02 Spare 03 Power windows front 04 Power windows rear 05 Logistic mode 06 Spare 07 Spare 08 Spare

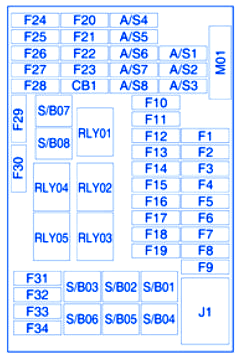

Vauxhall Mokka 2013 Instrument panel Fuse Panel / Board – Fuse Symbol Map
