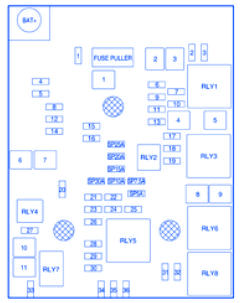

Vauxhall Mokka 2013 Engine Compartment Fuse Box / Block Circuit Breaker
Vauxhall Mokka 2013 Engine Compartment Fuse Box / Block Circuit Breaker
No. Circuit Mini Fuses 1 Sunroof 2 Exterior mirrors 3 — 4 — 5 Electrical brake control module 6 Intelligent battery sensor 7 — 8 Transmission control module 9 Body control module 10 Headlight levelling 11 Rear window wiper 12 Heated rear window 13 Headlight actuator (left hand) 14 Heated exterior mirrors 15 — 16 Seat heating 17 Transmission control module 18 Engine control module 19 Fuel pump 20 — 21 Cooling fan 22 — 23 Ignition coil, Engine control module 24 Washer pump 25 Headlamp actuator (right hand) 26 Engine control module 27 — 28 Engine control module 29 Engine control module 30 Exhaust system 31 Left-hand high beam 32 Right-hand high beam 33 Engine control module 34 Horn 35 Climate control, air conditioning system 36 Front fog lamp
No. Circuit J-cases Fuses 1 Electrical brake control module 2 Front wiper 3 Engine control module 4 Engine control module 5 — 6 Fuel heater 7 — 8 Cooling fan 9 Cooling fan 10 Engine control module, Glow plug 11 Starter
Vauxhall Mokka 2013 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
