Vauxhall Meriva A 2002 In Passenger Compartment Fuse Box / Block Circuit Breaker
Vauxhall Meriva A 2002 In Passenger Compartment Fuse Box / Block Circuit Breaker
No. Circuit Ampere rating 1 Central control unit 7,5 2 Immobiliser, hazard warning lights, exterior lighting 5 3 Headlight wash system 30 4 Infotainment system, diesel engine 20 5 — — 6 — — 7 Starter, diesel engine: engine controller 10 8 Horn 15 9 Fuel injection system, fuel pump, stationary heater 20 10 Turn signal lights 20 11 Infotainment system, Information display 20 12 Heated rear window, exterior mirrors 7,5 13 Central locking , Vauxhall alarm system 10 14 Engine control: Petrol engine 15 Engine control: Diesel engine 7,5 15 Engine control unit, 10 Z 17 DTH engine 15 16 Accessory socket, cigarette lighter 20 17 — — 18 Adaptive Forward Lighting (AFL) 15 19 Central locking system 20 20 Interior lighting, reading light 5 21 Windscreen wash system 15 22 Rear electric windows 20 23 Slide / tilt sunroof, skylight roof 20 24 Vauxhall alarm system 5 25 Rear window wiper 15

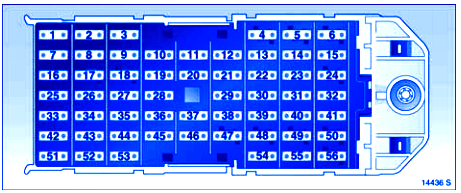

Vauxhall Meriva A 2002 In Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
No. Circuit Ampere rating 26 Ignition system, engine electronics 15 27 Engine control, airbags, ESP®Plus 5 28 Air conditioning system 7,5 29 Front left electric window 20 30 — — 31 Engine control 7,5 Z 17 DTH engine 10 32 Front right electric window 20 33 Central control module, immobiliser, control indicators 5 34 Windscreen wiper 30 35 Interior lighting, interior mirror, information display 5 36 Brake light, ABS, ESP®Plus 15 37 Cigarette lighter, auxiliary heater 20 38 Seat heater (left) 15 39 Seat heater (right) 15 40 Adap tive Forward Lighting (AFL), automatic headlight range adjustment 5 41 Reversing lights 15 42 Engine cooling, lighting 5 43 Left parking light 5 44 Right parking light 5 45 Fog tail light 10 46 Front fog lights 15 47 Towing equipm ent, accessory socket 20 48 Diesel filter heater 30 49 – — 50 Diesel filter heater 30 51 Left dipped beam: Xenon headlight 15 Halogen headlight 10 52 Right dipped beam : Xenon headlight 15 H alogen hea dlight 10 53 Sunroof, electric windows, radio 5 54 Main beam (left) 10 55 Main beam (right) 10 56 —
Vauxhall Meriva A 2002 In Passenger Compartment Fuse Panel / Board – Fuse Symbol Map
