Vauxhall Insignia 2010 Main Fuse Box/Block Circuit Breaker Diagram
| No. | Circuit Rating |
|---|---|
| 19 | - - |
| 20 | CDC 10A |
| 21 | Heated Exterior Mirrors 7.5A |
| 22 | Sun Roof 25A |
| 23 | Electric Windows, Rear 25A |
| 24 | Diagnostics Plug 7.5A |
| 25 | - - |
| 26 | Electrically Retractable Exterior Mirror 7.5A |
| 27 | Ultrasonic Sensor, Vauxhall Alarm System 5A |
| 28 | - - |
| 29 | Cigarette Lighter, Front Socket 15A |
| 30 | - - |
| 31 | - - |
| 32 | - - |
| 33 | - - |
| 34 | Sun Roof 25A |
| 35 | - - |
| 36 | Towing Equipment 20A |
| 37 | Courtesy Light 5A |
| 38 | Central Locking Sytem, Clamp 30 25A |
| 39 | Seat Heater (Left) 15A |
| 40 Seat Heater (Right) 15A | |
| 41 | - - |
| 42 | - - |
| 43 | - - |
| 44 | - - |

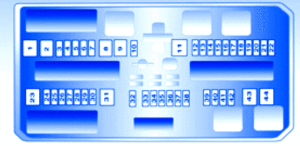

Vauxhall Insignia 2010 Main Fuse Panel/Board – Fuse Symbol Map
