Vauxhall Corsa Diesel 2011 Fuel Fuse Box/Block Circuit Breaker Diagram

Vauxhall Corsa Diesel 2011 Fuel Fuse Box/Block Circuit Breaker Diagram



No.CircuitRating
24Fuel pump15A
25Transmission Electronic15A
26Engine Electronics10A
27Power Steering5A
28Transmission Electronics5A
29Transmission Electronics7.5A
30Enginge Electronics10A
31Adaptive Forward Ligting Headighting, Headlight Range Adjustment10A
32Brake System, Air Conditioning System, Clutch Switch5A
33Adaptive Forward Lighting, headlight Range adjustment, light switch5A
34Control Unit, Steering Column Module7.5A
35Infotainment System20A
36Mobile Telephone, digital radi, Twin Audio, Display7.5A

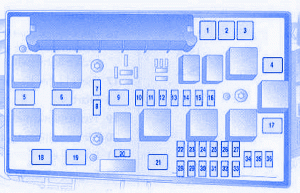

Vauxhall Corsa Diesel 2011 Fuel Fuse Panel/Board – Fuse Symbol Map
