| No. | Circuit |
|---|---|
| 1 | Starter |
| 2 | Air conditioning system |
| 3 | Diesel fuel filter heater |
| 4 | Horn |
| 5 | Manual transmission automated, automatic transmission |
| 6 | Engine control unit |
| 7 | Fog lights |
| 8 | Engine cooling |
| 9 | Engine cooling |
| 10 | Manual transmission automated |
| 11 | Glow plugs, ignition system |
| 12 | Headlight range adjustment, Adaptive forward lighting |
| 13 | Air conditioning system |
| 14 | Manual transmission automated |
| 15 | High beam (right) |
| 16 | High beam (left) |
| 17 | Main relay |
| 18 | Engine control unit |
| 19 | Airbags |
| 20 | Main relay |
| 21 | Main relay |
| 22 | Central control unit |
| 23 | Tyre repair kit |
| 24 | Fuel pump |
| 25 | ABS |
| 26 | Heated rear window |
| 27 | ABS |
| 28 | Interior fan |
| 29 | Cigarette lighter |
| 30 | Air conditioning system |
| 31 | Power window (left) |
| 32 | Power window (right) |
| 33 | Heated exterior mirrors |
| 34 | — |
| 35 | — |

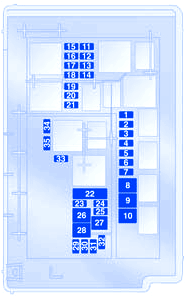

Vauxhall Corsa D 2014 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
