Vauxhall Combo C 2001 Engine Compartment Fuse Box / Block Circuit Breaker

Vauxhall Combo C 2001 Engine Compartment Fuse Box / Block Circuit Breaker
Vauxhall Combo C 2001 Engine Compartment Fuse Box / Block Circuit Breaker

FuseCircuitRating [A]
1Central control unit7,5
2Engine control unit7,5
3Instruments, information display, light switch, horn, hazard warning lamps, immobiliser7,5
4Towing equipment, number plate lights20
5Electric w indow (left)20
6
7
8Starter10
9Fuel injection system, fuel pump, stationary heater20
10Horn10
11Central control unit15
12Information display, infotainment system: engine1) Z 13 DTJ, Z 17 DTH20
13Anti-theft alarm system7,5
14Exterior mirrors7,5
15Windscreen washer system15
16Courtesy light7,5
17Central control unit20
18
19Power window (right)20
20
21
22Central control unit, immobiliser5
23Windscreen wipers30
24Infotainment system, inform ation display, light switch, courtesy light, instruments, EPS5
25Reversing lights, cigarette lighter, power outlet25

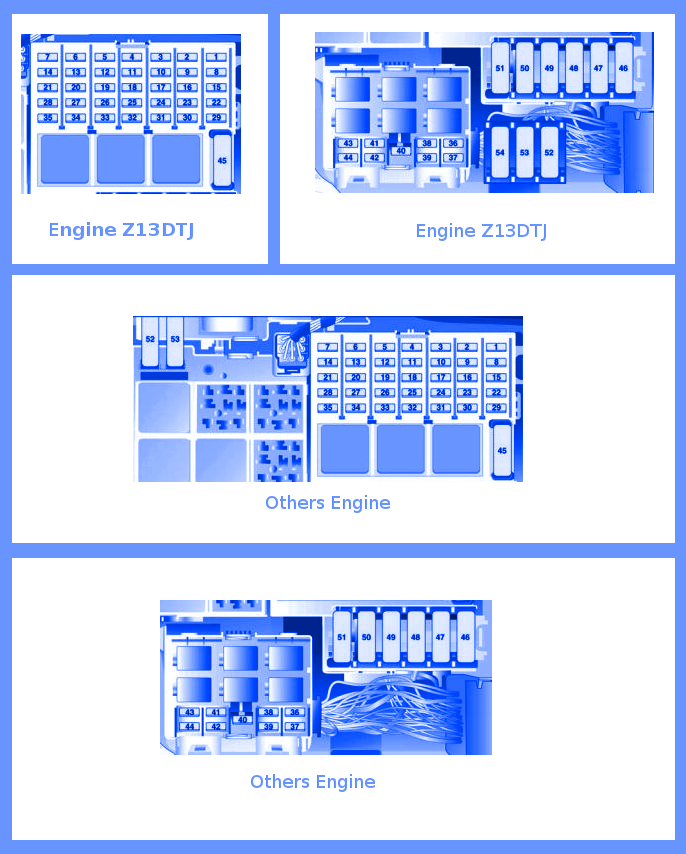

Vauxhall Combo C 2001 Engine Compartment Fuse Panel / Board – Fuse Symbol Map

FuseCircuitRating [A]
26Seat heater (right)15
27Seat heater (left)15
28ABS25
29Rear window wiper20
30Engine control unit15
31Air conditioning system15
32ABS, manual transmission automated, airbag5
33Petrol engine: Engine control unit15
Diesel engine: Engine cintrol unit7,5
34Diesel filter heater30
35Power windows, Infotainment system5
36Dipped beam (left)10
37Dipped beam (right10
38Tail light (left), parking light (left)5
39Tail light (right), parking light (right)5
40Brake lights10
41Front fog lights15
42Rear fog light10
43Main beam (left)10
44Main beam (right)10
45Ventilation fan30
46Engine control unit20
47Heated rear window30
48Starter30
49EPS50
50ABS40
51Petrol engine: manual transmission automated60
Diesel engine: engine control unit80
52Radiator fan: engine Z 14 XEP with air conditioning30
Radiator fan: engine Z 14 XEP without air conditioning40
Radiator fan: diesel engine40
53Air conditioning system cooling fan: Petrol engine30
Air conditioning system cooling fan: Diesel engine40
54Easytronic60

Vauxhall Combo C 2001 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
