Vauxhall Astra 1991 Under The Dash Fuse Box/Block Circuit Breaker Diagram

Vauxhall Astra 1991 Under The Dash Fuse Box/Block Circuit Breaker Diagram



No.CircuitRating
24Diagnostics Plug7.5A
25--
26Electrically Retractable Exterior Mirrors7.5A
27Ultrasonic Sensor, Vauxhall Alarm System5A
28--
29Cigarette Lighter, Front Socket15A
30Rear Socket15A
31--
32--
33Open & Start System15A
34Sunroof, Twin Top25A
35Rear Socket15A
36Towing Equipment20A
37--
38Central Locking System, terminal 3025A
39Seat Heater (Left)15A
40Seat Heater (Right)15A
41--
42--
43--
44--

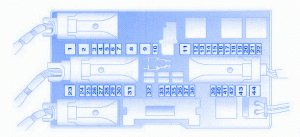

Vauxhall Astra 1991 Under The Dash Fuse Panel/Board – Fuse Symbol Map
