Vauxhall Ampera 2011 Load Compartment Fuse Box / Block Circuit Breaker
Vauxhall Ampera 2011 Load Compartment Fuse Box / Block Circuit Breaker

FusesUsage
F1—
F2Fuel system control module
F3Passive start/ Passive entry module
F4Heated seats
F5Driver door switches (Outside rearview mirror/ Charge port door release/ Refuel request/Driver window switch)
F6Fuel (Diurnal valve and evap. leak check module)
F7Accessory power module cooling fan
F8Amplifier
F9Digital audio broadcast
F10Regulated voltage control/ Ultrasonic front and rear parking assis
F11Horn
F12Rear power windows
F13Electrical parking brake
F14Rear defog (Upper grid)
F15—
F16Tailgate release
F17—
F18—

RelaysUsage
R1Rear defog (Upper grid)
R2Tailgate release
R3—
R4—
R5—
R6—
R7Horn
R8Horn

DiodeUsage
DIODE—

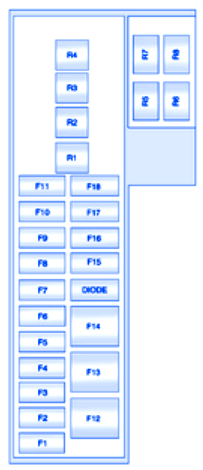

Vauxhall Ampera 2011 Load Compartment Fuse Panel / Board – Fuse Symbol Map
