Vauxhall Ampera 2011 Engine Compartment Fuse Box / Block Circuit Breaker
Vauxhall Ampera 2011 Engine Compartment Fuse Box / Block Circuit Breaker
No. Usage Mini fuse 1 Engine control module – switched power 2 Emissions 3 — 4 Ignition coils / Injectors 5 Column lock 6a — 6b — 7 — 8 — 9 Heated mirrors 10 Air conditioning control module 11 Traction power inverter module – Battery 12 — 13 Cabin heater pump and valve 14 Theft deterrent — Power sounder 15 Traction power inverter module and transmission control module — Battery 17 Engine control module — Battery 22 Left high‐beam headlight 24 — 25 —

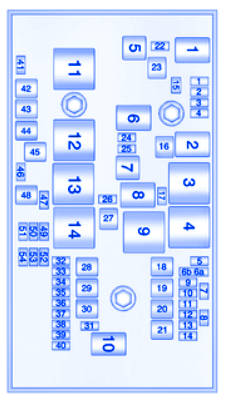

Vauxhall Ampera 2011 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
No. Usage Mini fuse 26 Theft deterrent — Horn 31 — 32 Run/Crank — Sensing diagnostic module, instrument cluster, passenger airbag display, headlight level switch, automatic dimming inside rearview mirror 33 Run/Crank — Vehicle integration control module 34 Vehicle integration control module — Battery 35 — 36 Power electronics coolant pump 37 Cabin heater control module 38 Rechargeable energy storage system (high voltage battery) coolant pump 39 Rechargeable energy storage system (high voltage battery) control module 40 Front windscreen washer 41 Right high‐beam headlight 46 — 47 — 49 — 50 Run/Crank — Rear view camera, accessory power module, tyre pressure monitor, headlight levelling motors 51 Run/Crank for ABS/ Rechargeable energy storage system (high voltage battery) 52 Engine control module/ transmission control module — Run/Crank 53 Traction power inverter module — Run/Crank 54 Run/Crank — Fuel system control module, air conditioning control module, on‐board charger
No. Usage J-case fuses 16 — 18 — 19 Front power window 20 — 21 Antilock brake system electronic control unit 23 Charge port door 27 — 28 — 29 — 30 Antilock brake system motor 42 Right cooling fan 43 Front wipers 44 Charger 45 — 48 Left cooling fan
No. Usage Mini relays 3 Powertrain 4 Heated mirrors 7 — 9 — 11 — 12 — 13 — 14 Run/Crank
No. Usage Micro relays 1 — 2 — 6 — 8 — 10 —
No. Usage Ultra-micro relays 5 Charge port door
Vauxhall Ampera 2011 Engine Compartment Fuse Panel / Board – Fuse Symbol Map
