| Fuse | Circuit |
|---|---|
| 1 | ABS pump |
| 2 | Front wiper |
| 3 | Blower |
| 4 | Instrument panel |
| 5 | — |
| 6 | — |
| 7 | Electrical vacuum pump |
| 8 | Cooling fan low |
| 9 | Cooling fan high |
| 10 | Cooling fan electrical vacuum pump |
| 11 | Starter |

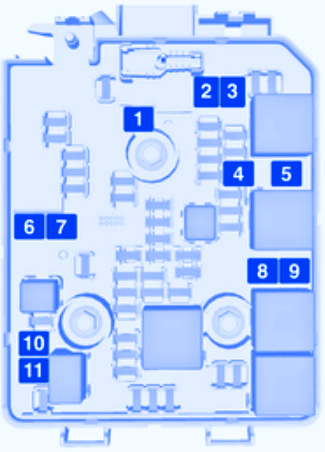

Vauxhall Adam 2014 Compartment Fuse Panel / Board – Fuse Symbol Map
