TVR Tuscan 2003 Ignition Coil Fuse Box/Block Circuit Breaker Diagram
| Fuse/Realay Map | Rating |
|---|---|
| FUSE | |
| DIP BEAM OUT | 25A |
| ECU | 20A |
| ENGINE FAN | 25A |
| H.MIRROR | 15A |
| H.SEATS | 30A |
| HAZARD, SIREN | 15A |
| BATT FEED TO D/LOCKS | 15A |
| G/BOX, AUX, IGN, FEED | 10A |
| IGN TO D/LOCKS | 10A |
| CLOCK, LIGHT SWITCH | 15A |
| WINDOWS | 30A |
| IGN, COIL, ECU | 15A |
| SPARE | |
| IGN TO DASH, INSTRUMENTS, HEATER | 15A |
| WIPER DELAY | 20A |
| ELEC.MIRRORS, BOOT LOCK | 10A |
| IGN TO COLUMN | 20A |
| WIPER, BRAKE LIGHT | 20A |
| INT. LIGHT, HORN | 10A |
| MAIN BEAM | 25A |
| IGN. SWITCH | 25A |
| RELAY | |
| DIP BEAM RELAY | |
| HORN RELAY | |
| IGN. FEEDS RELAY | |
| COURTESY LIGHT DELAY UNIT | |
| ENGINE COOLING FAN RELAY | |
| WASH/WIPE DELAY UNIT | |
| MAIN BEAM RELAY | |

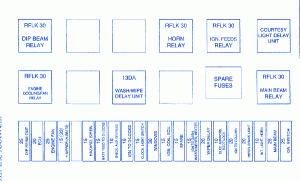

TVR Tuscan 2003 Ignition Coil Fuse Panel/Board – Fuse Symbol Map
