TVR 350i 1986 Fuse Box/Block Circuit Breaker Diagram

TVR 350i 1986 Fuse Box/Block Circuit Breaker Diagram

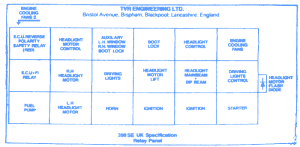

Fuse/Relay Map
-E.C.U Reverse Polarity Safety Relay
-Headlight Motor Control
-Auxiliary L.H Window, R.H Window Boot Lock
-Boot Lock
-Headlight Control
-Engine Cooling Fans
-E.C.U FI Relay
-R.H Headlight Motor
-Driving Lights
-Headlight Motor Lift
-Headlight Main Beam Dip Beam
-Driving Lights Control
-Fuel Pump
-L.H Headlight Motor
-Horn
-Ignition
-Ignition
-Starter
-Headlight Motor flash Diode

TVR 350i 1986 Fuse Panel/Board – Fuse Symbol Map
