No. | Fuse Symbol | Amps | Fuse Map |
---|---|---|---|
1 | CIG & RADIO | 20A | Cigarette Lighter, Digital Clock Display, Air Conditioning System, Radio, Cassette Type Player, Power Rear View Mirrors |
2 | TAIL | 15A | Tail Lights, Parking Lights, License Plate Lights, Instrument Panel Lights |
3 | IGN | 10A | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Electric Cooling Fans |
4 | ECU-B | 10A | Power Rear View Mirrors |
5 | DEF-I/UP | 7.5A | Multiport Fuel Injection System/Squential Multiport Fuel Injection System |
6 | STOP | 15A | Stop Lights, High-Mounted Stoplight, Anti-lock Brake System |

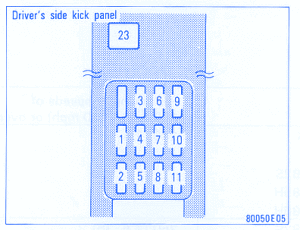

Toyota Solara 2003 Under Dash Fuse Panel/Board – Fuse Symbol Map
