Toyota Red Cellica 1997 Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Map | Amps |
|---|---|
| IGN | 7.5A |
| CIG & RADIO | 15A |
| STOP | 15A |
| GAUGE | 15A |
| TURN | 10A |
| ECU-IG | 15A |
| WIPER | 20A |
| ECU-B | 15A |
| TAIL | 15A |
| Defogger Relay | |
| Taillight Relay |

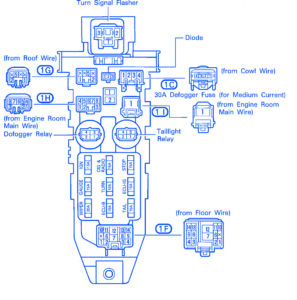

Toyota Red Cellica 1997 Fuse Panel/Board – Fuse Symbol Map
