Fuse/Relay Map | Amps |
---|---|
IGN | 7.5A |
CIG & RADIO | 15A |
STOP | 15A |
GAUGE | 15A |
TURN | 10A |
ECU-IG | 15A |
WIPER | 20A |
ECU-B | 15A |
TAIL | 15A |
Defogger Relay | |
Taillight Relay |

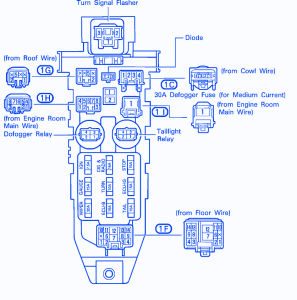

Toyota Red Celica 1990 Fuse Panel/Board – Fuse Symbol Map
Sep 12
Fuse/Relay Map | Amps |
---|---|
IGN | 7.5A |
CIG & RADIO | 15A |
STOP | 15A |
GAUGE | 15A |
TURN | 10A |
ECU-IG | 15A |
WIPER | 20A |
ECU-B | 15A |
TAIL | 15A |
Defogger Relay | |
Taillight Relay |
Toyota Red Celica 1990 Fuse Panel/Board – Fuse Symbol Map
