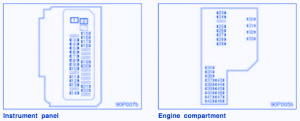

Toyota Prius 2009 Main Fuse Box/Block Circuit Breaker Diagram

Toyota Prius 2009 Main Fuse Box/Block Circuit Breaker Diagram



Fuse SymbolAmpsFuse Map
1PWR30APower Window
2DEF40ARear Window Defogger
3M/HTR15AOutside Rear View Mirror Heater
4WIP30AWindshield Wiper
5RR WIP15ARear Wiper
6WSH20AWasher
7ECU-IG7.5ASmart Entry and Start System, Power Windows, Multi-Information Display, Electric Power Steering, Theft Deterrent System
8GAUGE10AGauge and Meter, Back-Up Lights, Emergency Flasher, Power Windows
9OBD7.5AOn-Board Diagnosis System
10STOP7.5AStop Lights
11DOOR25APower Door Lock System
12ACC-B25APower Outlet ACC Fuses
13ECU-B15AMulti-Information Display, Power Windows, Air Conditioning System
14AM17.5AHybrid System
15TAIL10ATail Lights, License Plates Light, Parking Lights
16PANEL7.5AMulti-Information Display, Clock, Audio System, Instrument Panel Lights
17A/C(HTR)10AAir Conditioning System
18FR DOOR20APower Windows
19PWR OUTLET15APower Outlet
20ACC7.5AAudioS System, Multi-Information Display, Clock
21PWR OUTLET FR15APower Outlet

Toyota Prius 2009 Main Fuse Panel/Board – Fuse Symbol Map
