Toyota Pick Up Canada 1994 Fuse Box/Block Circuit Breaker Diagram
| Symbol | Fuse/Relay Map | Amps |
|---|---|---|
| Fuses | ||
| 1 | ENGINE | 10A |
| 2 | IGN | 7.5A |
| 3 | TAIL | 15A |
| 4 | WIPER | 20A |
| 5 | GAUGE | 10A |
| 6 | STOP | 15A |
| 7 | RADIO | 7.5A |
| 8 | CIG | 15A |
| 9 | TURN | 10A |
| 10 | REAR, ANTILOCK | 15A |
| 11 | - | - |
| 12 | ECM-IG | 20A |
| 13 | - | - |
| 14 | POWER (W/Power Door Lock and Power Window) | 30A |
| Relay | ||
| A | Back-Up Relay (USA With Colum A/T) DRL Relay No.4 (CANADA) | |
| B | Taillight Control Relay | |
| C | Horn Relay | |
| 14 | Back-Up Relay (CANADA With Colum A/T) | |

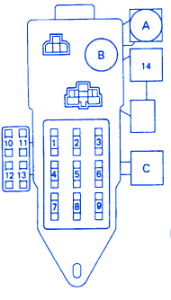

Toyota Pick Up Canada 1994 Fuse Panel/Board – Fuse Symbol Map
