Toyota MR2 Spyder Kick 2000 Panel Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP | AMPS |
|---|---|---|
| 1 | WASHER | 10A |
| 2 | HTR | 10A |
| 3 | WIPER | 20A |
| 4 | ECU-IG | 7.5A |
| 5 | FAN-IG | 7.5A |
| 6 | TURN | 7.5A |
| 7 | GAUGE | 7.5A |
| 8 | SRS | 7.5A |
| 9 | DEF | 25A |
| 10 | OBD | 7.5A |
| 11 | AM1 | 7.5A |
| 12 | ACC | 25A |
| 13 | DOOR | 15A |
| 14 | FR FOG | 15A |
| 15 | STOP | 15A |
| 16 | TAIL1 | 20A |
| 17 | D P/W | 20A |
| 18 | P P/W | 20A |
| 19 | RADIO 1 | 15A |
| 20 | DOME | 10A |
| 21 | ECU-B | 10A |
| 22 | TAIL 2 | 10A |
| 23 | PANEL | 7.5A |
| 24 | RADIO 2 | 7.5A |
| 25 | CIG | 15A |
| 26 | I/UP | 7.5A |
| 27 | - | - |

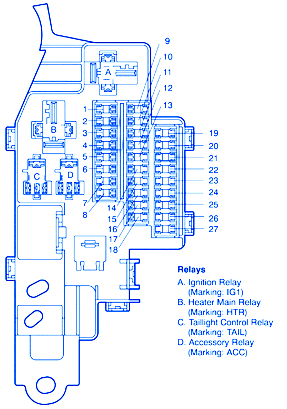

Toyota MR2 Spyder Kick 2000 Panel Fuse Panel/Board – Fuse Symbol Map
