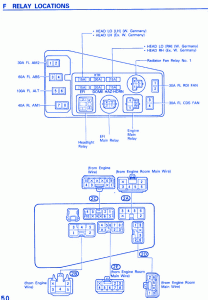

Toyota Echo Sedan 2005 Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | AMPS |
|---|---|
| FL AM2 | 30A |
| FL ABS | 60A |
| FL ALT | 100A |
| FL AM1 | 40A |
| FL RDI FAN | 30A |
| FL CDS FAN | 30A |
| HEAD LO, HEAD LH | 15A |
| RTR | 30A |
| HEAD LO, HEAD RH | 15A |
| EFI | 15A |
| DOME | 20A |
| HAZ-HORN | 15A |
| Radiator Fan Relay No.1 | |
| Headlight Relay | |
| EFI Main Relay | |
| Engine Main Relay |
Toyota Echo Sedan 2005 Fuse Panel/Board – Fuse Symbol Map
