Toyota Corolla 1996 Fuse Box/Block Circuit Breaker Diagram
| No. | Fuse Symbol | Amps | Fuse Map |
|---|---|---|---|
| 1 | CIG & RADIO | 20A | Cigarette Lighter, Digital Clock Display, Air Conditioning System, Radio, Cassette Type Player, Power Rear View Mirrors |
| 2 | TAIL | 15A | Tail Lights, Parking Lights, License Plate Lights, Instrument Panel Lights |
| 3 | IGN | 10A | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Electric Cooling Fans |
| 4 | ECU-B | 10A | Power Rear View Mirrors |
| 5 | DEF-I/UP | 7.5A | Multiport Fuel Injection System/Squential Multiport Fuel Injection System |
| 6 | STOP | 15A | Stop Lights, High-Mounted Stoplight, Anti-lock Brake System |
| 7 | TURN | 10A | Turn Signal Lights, Emergency Flashers |
| 8 | ECU-IG | 15A | Starting System, Anti-Lock Brake System |
| 9 | DEFOG | 30A | Rear Window Defogger |
| 10 | GAUGE | 10A | Gauges and Meters, Service Reminder Indicators (Execpt Discharge and Open Door Warning Lights), Back-Up Lights, Air Conditioning System |
| 11 | WIPER | 20A | Windshield Wipers and Washer, Rear Window Wiper and Washer |
| 12 | A/C | 15A | Air Conditioning System |
| 13 | DOME | 20A | Interior Light, Luggage Compartment Light, Turn Light, Clock, Open Door Warning Light, Radio, Cassette Tape Player |

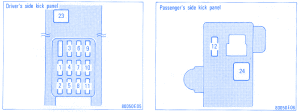

Toyota Corolla 1996 Fuse Panel/Board – Fuse Symbol Map
