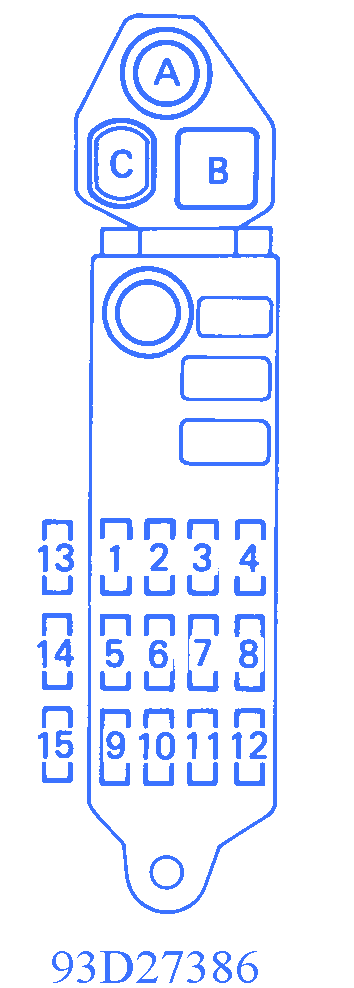

Toyota Corolla 1992 Side Kick Panel Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| FUSES | |
| 1. | Stoplight |
| 2. | Engine |
| 3. | Ignition |
| 4. | Gauges |
| 5. | Radio |
| 6. | Wiper |
| 7. | Taillight |
| 8. | Turn Signal Light |
| 9. | ECU-B |
| 10. | Cigarette Lighter |
| 11. | Not Used |
| 12. | Sun Roof |
| 13. | Not Used |
| 14. | ECU-IG |
| 15. | Not Used |
| RELAYS & CIRCUIT BREAKERS | |
| A | Clutch Start Relay (M/T) |
| B | Defogger Relay |
| C | Power Circuit Breaker |
Toyota Corolla 1992 Side Kick Panel Fuse Panel/Board – Fuse Symbol Map
