Toyota Celica GTS 22RE 1988 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY MAP | AMPS |
|---|---|
| DOME | 7.5A |
| CIG | 15A |
| ECU IG | 15A |
| TURN | 7.5A |
| GAUGE | 7.5A |
| RADIO | 7.5A |
| ECU + | 15A |
| HEAD RTR | 7.5A |
| IGN | 7.5A |
| DEFOG CB | |
| DEFOGGER RELAY | |
| IGNITION KEY LIGHT RELAY | |
| CHARGE LIGHT RELAY |

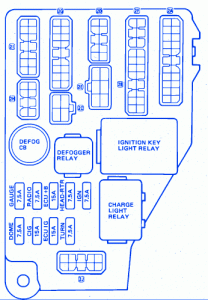

Toyota Celica GTS 22RE 1988 Main Fuse Panel/Board – Fuse Symbol Map
