Toyota Camry 4 cyl 1991 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse map |
|---|---|---|
| 1 | 15A | (1987-88) |
| 7.5A | (1989-91) Gauges, Warning Lights, Back-Up Lights & A/T Overdrive System, Rear Window Defogger & Automatic Shoulder Belt, Power Windows & Door Lock System | |
| 2 | 7.5A | (1987-88) Interior, Personal & Door Courtesy Lights, Trunk, Ignition Switch & Door Warning Lights |
| - | (1989-91) | |
| 3 | 15A | (1987-88) |
| 20A | (1989-91) Stop Lights | |
| 4 | 15A | Taillights, Parking Lights, License Lights, Side Marker Lights, Glove Box Light, Instrument illumination |
| 5 | 15A | Cigarette Lighter & Digital Clock, Shift Lock System (A/T - 1989-91) |
| 6 | 7.5A | Radio & Cassette Player, Power Rear View Mirrors |
| 7 | 7.5A | Turn Signal Lights |
| 8 | 10A | Engine Idle-Up System |
| 9 | - | Blank |
| 10 | 10A | Charging & Emission Control System |

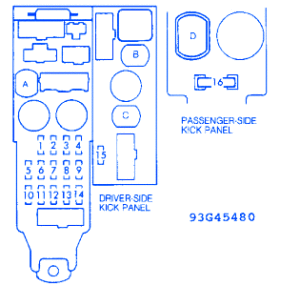

Toyota Camry 4 cyl 1991 Fuse Panel/Board – Fuse Symbol Map
