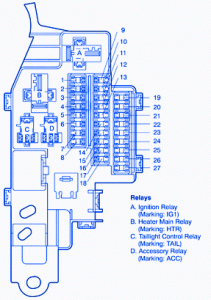

Toyota Avalon Kick 2000 Panel Fuse Box/Block Circuit Breaker Diagram

Toyota Avalon Kick 2000 Panel Fuse Box/Block Circuit Breaker Diagram



FUSE SYMBOLFUSE MAPAMPS
1WASHER10A
2HTR10A
3WIPER20A
4ECU-IG7.5A
5FAN-IG7.5A
6TURN7.5A
7GAUGE7.5A
8SRS7.5A
9DEF25A
10OBD7.5A
11AM17.5A
12ACC25A
13DOOR15A
14FR FOG15A
15STOP15A
16TAIL120A
17D P/W20A
18P P/W20A
19RADIO 115A
20DOME10A
21ECU-B10A
22TAIL 210A
23PANEL7.5A
24RADIO 27.5A
25CIG15A
26I/UP7.5A
27--

Toyota Avalon Kick 2000 Panel Fuse Panel/Board – Fuse Symbol Map
