Tata Nano EPS Fuse Box / Block Circuit Breaker
Fuse Function A FL-01 Radiator Fan 20 FL-02 Vehicle & Ignition Switch 40 FL-03 Vehicle & Ignition Switch 60 FL-04 EPS 60 FS-01 WW RHS Relay 25 FS-02 WW LHS Relay 25 FS-03 Power Outlet Socket 10 FS-04 HL High Beam LHS 15 FS-05 HL High Beam RHS 15 FS-06 HL Dip Beam LHS 15 FS-07 HL Dip Beam RHS 15 FS-08 Park LHS 5 FS-09 Park RHS 5 FS-10 Illumination 5 FS-11 Transit Link 30 FS-12 Front Fog Lamps 15 FS-13 HL Flash / Flasher Unit 20 FS-14 Roof Light 5 FS-15 Audio (Battery) 10 FS-16 Fuel Pump 15 FS-17 Park / Hazard Switch 10 Fs-18 Horn 10 FS-19 Wiper / Wash 20 FS-20 Combi for H/L Supply 20

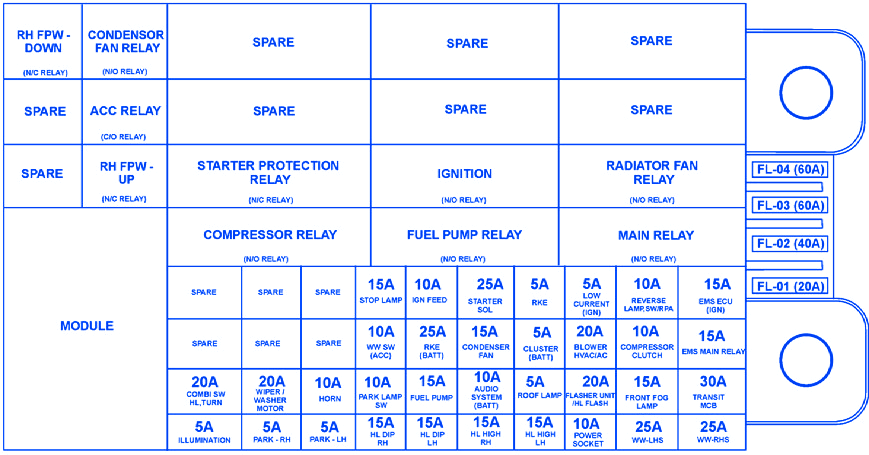

Tata Nano EPS Fuse Panel / Board – Fuse Symbol Map
Fuse Function A FS-21 EMS Main Relay 15 FS-22 Compressor Clutch 10 FS-23 Blower HVAC 20 FS-24 Immob./Cluster/OBD (Batt) 5 FS-25 Condenser Fan 15 FS-26 RKE (Battery) 25 FS-27 WW Switch 10 FS-28 Spare Spare FS-29 Spare Spare FS-30 Spare Spare FS-31 EMS ECU / Ignition Coil 15 FS-32 Reverse Lamps/RPA 10 FS-33 Low Current (Ignition) 5 FS-34 RKE (Ignition) 5 FS-35 Starter Circuit 25 FS-36 Cluster/Combi/EPS (IGN) 10 FS-37 Stop (Brake) Light 15 FS-38 Spare Spare FS-39 Spare Spare FS-40 Spare Spare
Tata Nano EPS Fuse Panel / Board – Fuse Symbol Map
