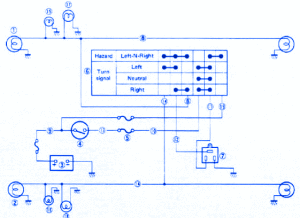

Suzuki Sammi 1.3 1990 Electrical Circuit Wiring Diagram
| Symbol | Description |
|---|---|
| 1 | Right Turn Signal |
| 2 | Left Turn Signal |
| 3 | Battery |
| 4 | Main Switch |
| 5 | Fuse |
| 6 | Turn Signal and Hazard Warning Switch |
| 7 | Turn Signal and Hazard Warning Relay |
| 8 | Green/Yellow |
| 9 | White/Yellow |
| 10 | Yellow |
| 11 | Yellow/Blue |
| 12 | Green |
| 13 | Black/Blue |
| 14 | Green/Red |
| 15 | Meter Pilot Light (Right) |
| 16 | Meter Pilot Light (Left) |
| 17 | Side Turn Signal (Right) |
| 18 | Side Turn Signal (Left) |
| 19 | White/Green |
Suzuki Sammi 1.3 1990 Electrical Circuit Symbol Map
