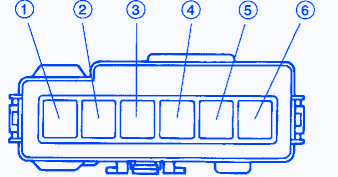

Suzuki Esteem 1996 Under Dash Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | AMPS | DESCRIPTION |
|---|---|---|
| 1 | 80A | MAIN |
| 2 | 60A | LAMP |
| 3 | 60A | IG |
| 4 | 60A | ABS |
| 5 | 30A | RDTR FAN |
| 6 | 60A | HTR |
Suzuki Esteem 1996 Under Dash Fuse Panel/Board – Fuse Symbol Map
