Symbol | Color | Amps | Fuse Name | Protected Circuit |
---|---|---|---|---|
12 | RED | 10A | HEATER | Air Conditioning, Mirror Heater Switch |
13 | BLANK | - | - | - |
14 | YELLOW | 20A | REAR DEFOG | Rear Defroster |
15 | BLUE | 15A | RADIO DOME | Fuel Injection Controller, Dome Light, Spot Light, Luggage Compartment Light, Radio, A/T Controller |
16 | BLANK | - | - | - |
17 | RED | 10A | HAZARD | Hazard Light, Keyless Entry |
18 | BLANK | - | - | - |
19 | RED | 10A | TAIL | Parking Marker Light (Front & Rear), License Plate Light |
20 | YELLOW | 20A | DOOR LOCK | Door Lock Control |
21 | BLANK | - | - | - |
22 | BLUE | 15A | AIR BAG | Air Bag |

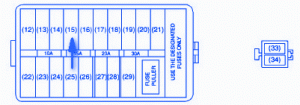

Suzuki Aerio 2006 Under The Dash Fuse Panel/Board – Fuse Symbol Map
