Subaru Outback 2000 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| Fuse Panel | Fuse Rating | Circuit |
|---|---|---|
| 1 | 20A | Radiator Cooling Fan (Main) |
| 2 | 20A | Radiator Cooling Fan (Sub) |
| 3 | 50A | ABS Motor |
| 4 | 20A | Rear Window Defogger |
| 5 | 15A | Hazard Warning Flasher, Horn |
| 6 | 15A | Meter, SRS Airbag System Warning Light |
| 7 | 10A | Automatic Transmission Control Unit, ABS UNIT |
| 8 | 10A | Alternator |
| 9 | 15A | Headlight (Right Side) |

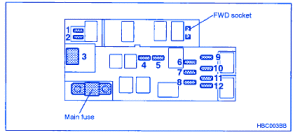

Subaru Outback 2000 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
