Subaru Baja Forward 2007 Socket Fuse Box/Block Circuit Breaker Diagram

Subaru Baja Forward 2007 Socket Fuse Box/Block Circuit Breaker Diagram



Fuse PanelFuse RatingCircuit
120ARadiator Cooling Fan (Main)
220ARadiator Cooling Fan (Sub)
350AABS Motor
420ARear Window Defogger
515AHazard Warning Flasher, Horn
615AMeter, SRS Airbag System Warning Light
710AAutomatic Transmission Control Unit, ABS Unit
810AAlternator
915AHeadlight (Right Side)
1015AHeadlight (Left Side)

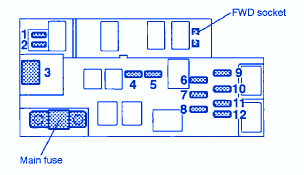

Subaru Baja Forward 2007 Socket Fuse Panel/Board – Fuse Symbol Map
