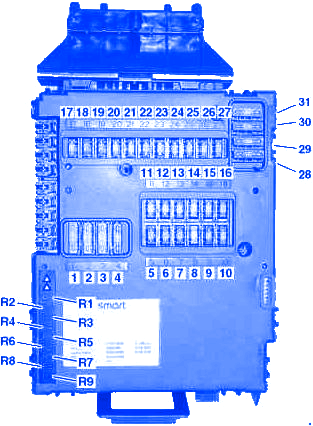

Smart City Coupe 2002 Fuse Box / Block Circuit Breaker

Smart City Coupe 2002 Fuse Box / Block Circuit Breaker
Smart City Coupe 2002 Fuse Box / Block Circuit Breaker

No.Fused functionA
1Starter25
2Windshield wiper, washer pump20
3Heater blower Heated seats, only with heated seats20
4Left/right power window30
5Low beam, high beam, front fog lamp, taillamp, backup lamp7,5
6Right standing lamp/taillamp, license plate illumination Right side-marker lamp, only for Canada7,5
7Left standing lamp/taillamp, parking lamp Left side-marker lamp, only for Canada7,5
8Engine main relay, circuit 87/320
9Engine main relay, circuit 87/210
10Engine main relay, circuit 87/115
11Instrument cluster, safety console, data link connector Horn, only with leather sport steering wheel with steering wheel rocker switch system7,5
12Radio CD, interior lamp15
13Front fog lamp15
14ESP control unit25
15Charge air fan motor Air conditioning compressor, only with air conditioning system Plus15
16Electric fuel pump10
17Rear window wiper (fortwo coupe)15
18ESP control unit, restraint systems control unit7,5
19Outside mirror adjustment, only with electrically adjustable and heated outside mirrors7,5
20Radio, instrument cluster, tachometer, data link connector, backup lamp CD changer15

Smart City Coupe 2002 Fuse Panel / Board – Fuse Symbol Map

No.Fused functionA
21Interior socket Cigarette lighter, only with smoking set15
22Right low beam7,5
23Left low beam7,5
24Right high beam7,5
25Left high beam, high beam indicator lamp7,5
26Stop lamps15
27MEG engine electronics control unit, EDG engine control unit7,5
28Rear window heater (fortwo coupe), cooling fan motor30
29Soft top (fortwo cabrio) Electric glass sliding roof (as of model year 2005)30
30Electronic selector lever module control unit40
31Horn, central locking, remote trunk lid release30
R1Electric glass sliding roof (up to model year 2004)15
R2Multifunction control unit, only for Canada5
R3vacant
R4vacant
R5Multifunction control unit, only for Canada15
R6vacant
R7vacant
R8Soft top (fortwo cabrio)25
R9Heated seats25
