Saturn Vue 2004 Instrument Fuse Box/Block Circuit Breaker Diagram
| FUSES | USAGE |
|---|---|
| RADIO | Radio, Data Link Connector |
| BCM/CLSTR | Body Control Module, Instrument Cluster |
| INT LTS | Body Control Module, Onstar |
| PARK | Park Lamps, Taillamps, Side Marker Lamps, License Lamps |
| HZRD | Hazard Lamps |
| DR LCK | Door Lock Relay |
| LOCK/MIRROR | Power Door Locks, Power Mirror, Entry Control |
| TURN | Turn Lamps |
| BCM | Body Control Module, Front Wipers, Windows, Sunroof |
| RADIO IGN | Radio, Power Mirror, Premium Radio Amplifier |
| HVAC | HVAC Control Head |
| IGN 1 | Instrument Cluster, BTSI Solenoid, Traction Switch, Fog Lamp Switch |
| BCM(IGN) | Body Control Module |
| AIRBAG | SDM Module |
| EPS | Electronic Power Steering |
| CRUISE | Cruise Control Switch, Brake Switch |
| HTD SEATS | Heated Seats |

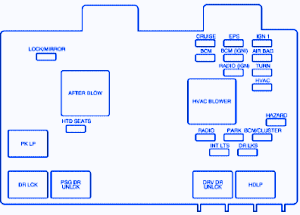

Saturn Vue 2004 Instrument Fuse Panel/Board – Fuse Symbol Map
